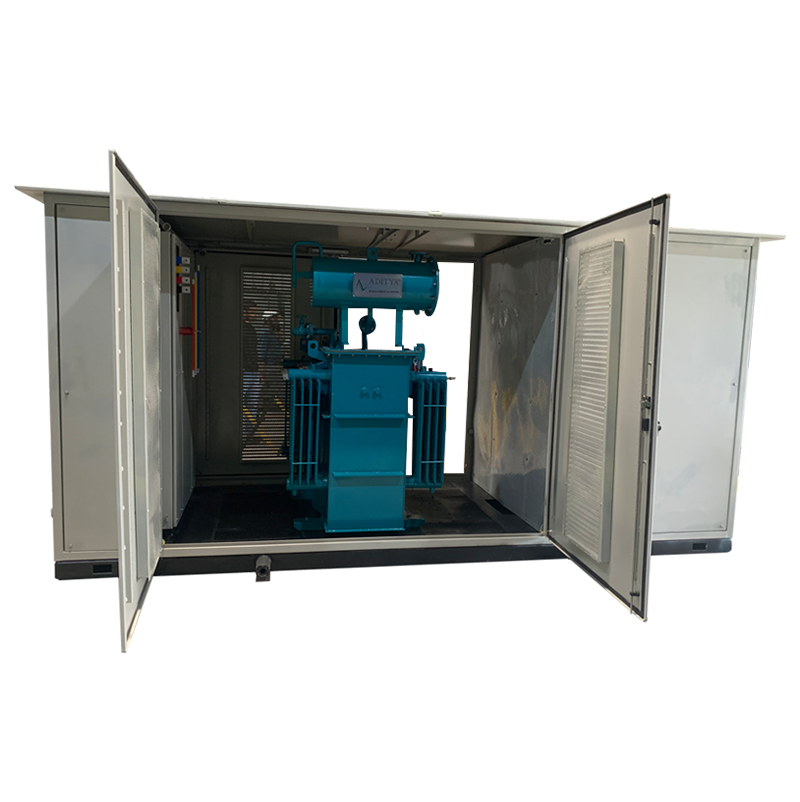

CSS consist of all the necessary equipment such as VCB, DRY / OIL TYPE TRANSFORMER, LBS, RMU, PROTECTIVE RELAYS, etc. Thus CSS is all in one compact MS Box which has all the necessary devices. This CSS is easily transferable and can be taken into work within a limited period of time. All you have to do is to give H.V side and L.V side connections and your CSS is ready for use which is safe and reliable. This transformer can be installed in various industries such as Casting industries, Textile industries, Residential areas, Solar farms, Wind farms, etc. We manufacture a wide range of Compact Substation.
Technical Specification
| Range | 250 KVA to 5000 KVA |
| Voltage Class | 3.3 KV, 6.6 KV, 11 KV, 22 KV & 33 KV |
| Transformer | Dry type / Vacuum impregnated transformer / OIL FILLED TRANSFORMER |
| Tapping | ±5% in 2.5% gap in 5 steps |
| H.V Side protection | VCB with alarm and trip protections |
| L.V Side protection | LBS for making and breaking contact from L.V side |
| Sensors | EMCO make 8 channels RTD with Fan, Alarm, Trip and Fault acknowledgement |
